Product Details:
|
| Application: | Irrigation System | Flow Rate: | 5.0~60.0m³/h |
|---|---|---|---|
| Port Thread: | Female G Bsp,Flange Connection | Port Size: | 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4'', 5'',6'' |
| Material: | Glassfilled Nylon/NBR/EPDM/SUS304 | Medium: | Water |
| Usage: | Hill Region Sprinkler Or Drip System | Voltage: | AC220V / AC110V / AC24V , 50/60Hz ,DC24V / DC12V / DC9V, DC Latching |
| High Light: | 63MM Adjustable Pressure Relief Valves,2" Pressure Relief Valves,BSP Female Thread Flange |
||
Specification:

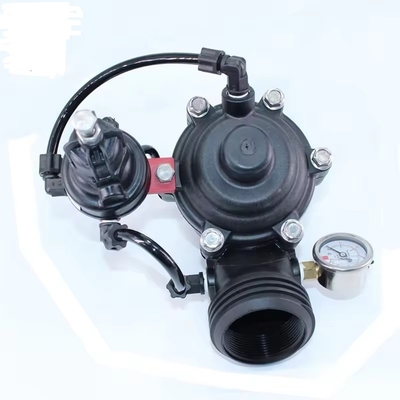

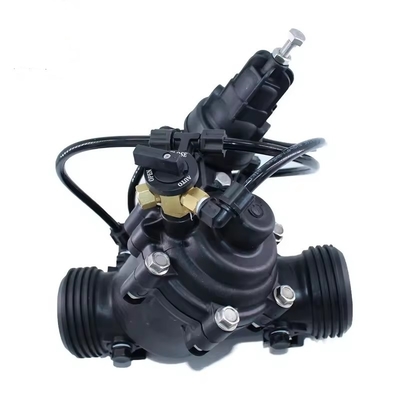

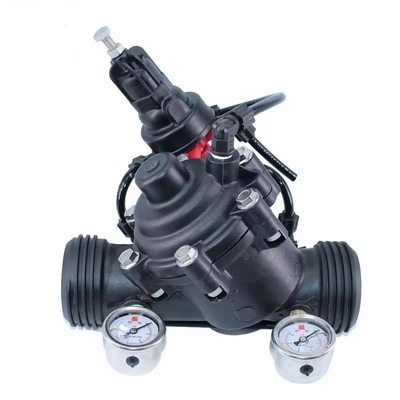

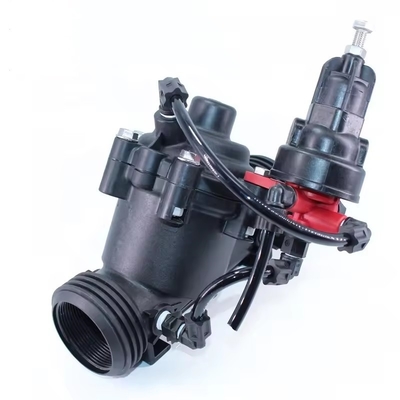

| Name | Pressure relief valve |
| Port size | 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4'', 5'',6'' |
| Pressure input | 1.0--10 Bar |
| Pressure output | 0.8--6.5 Bar |
| Flow rate | 50m3/h for 2'' |
| Temperature | Water Temp≤52℃ Surround Temp≤80℃ |
The Irrigation relief Valve is packaged carefully to ensure safe and secure delivery. The packaging materials used are lightweight and durable, minimizing the overall weight of the product for shipping purposes. The valve is placed in a sturdy cardboard box and is surrounded by protective foam inserts to prevent any damage during transit.
The package is labeled with the product name, model number, and any necessary handling instructions. The packaging is designed to be compact and easy to handle, making it convenient for both storage and shipping.
For shipping, we use reputable and reliable courier services to ensure timely delivery of the product to your designated location. The package is also insured to protect against any potential damages during transit.
Our team takes great care in packaging and shipping your Irrigation relief Valve to ensure that it arrives in perfect condition, ready to be installed for your irrigation needs.
Application:
This series Pressure relief valve are widely used in hill region sprnkkler or drip system,also used in filtration system,industrial dust and water treatment.
