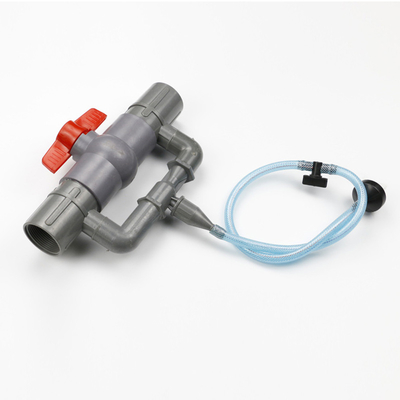

40 / 50 / 63mm Automatic Irrigation Venturi Fertilizer Injectors Flow Rate 8 - 20 M3/H

Large Image : 40 / 50 / 63mm Automatic Irrigation Venturi Fertilizer Injectors Flow Rate 8 - 20 M3/H

Product Details:

Place of Origin:	China
Brand Name:	TJ
Certification:	ISO9000
Model Number:	SFQ01-9

Payment & Shipping Terms:

Minimum Order Quantity:	5000pcs/day
Price:	Negotiate
Packaging Details:	opp, carton and pallect
Delivery Time:	10-15days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	30000pcs/day

Contact Now

40 / 50 / 63mm Automatic Irrigation Venturi Fertilizer Injectors Flow Rate 8 - 20 M3/H

Description

Name:	Fertilizer Injector	Material:	POM
Szie:	32/40/50/63mm	Performance:	Chemical Resistance
Working Pressure:	8 Bar	Application:	Fertilizer And Chemical Injection
High Light:	Irrigation Venturi Fertilizer Injectors , Automatic Venturi Fertilizer Injectors , Irrigation Fertilizer Injector 63mm

32/40/50/63mm Automatic Venturi Fertilizer Injectors Switch Filter Water Tube Device Watering Kits Garden Irrigation Supplies

Quick Information:

Color: Grey

Material: Plastic

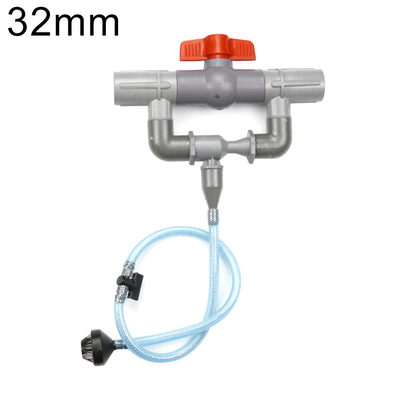

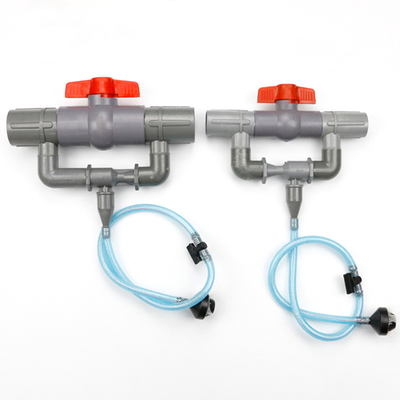

4 Size Optional: 32mm (1'') / 40mm (1.5'') / 50mm (2'') / 63mm (2.5'')

Technica Data:

Type	Other Watering & Irrigation
Season	All-Season
Place of Origin	China
Material	Plastic
Product name	Venturi Fertilizer Injector
MOQ	50
Application	farm irrigation drip
Keyword	Venturi Fertilizer Injector
Package	bag
Flow rate	8-20 m3/h
Max QTT	300-1200l/h
Model Number	1"/1.2"/1.5"/2" venturi fertilizer injector
Working pressure	8 bar
Diameter	32/50/63mm customizable

Features:

Made of engineering plastic, solid and durable.

Excellent chemical resistance to most of the chemicals.

Highly efficient and compact differential pressure injection device.

Fertilizer and chemical injection through drip and sprinkler irrigation systems.

Water and fertilizer synchronization irrigation is a significant characteristic of dripirrigation.

What Is Venturi Fertilizer Injectors?

-A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is know as the motive fluid. The motive fluid for irrigation injectors is the irrigation water itself. Vacuum created by the venturi sucks fertilizer or chemical into motive water.

How To Work Venturi?

-Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline. The energy to run these devices reduces the irrigation water pressure of the water line.

40 / 50 / 63mm Automatic Irrigation Venturi Fertilizer Injectors Flow Rate 8 - 20 M3/H 0

Application:

·1. Fertilizer and chemical injection through drip and sprinkler irrigation systems.

2. Select the appropriate specification of fertilizer Injector depend on the crop and irrigation area. Too big or too small maybe do nothing.

3. If in doubt always choose a smaller size, put it on a bypass assembly which allows you to adjust the flow through the venturi injector and does not restrict the flow as much.

40 / 50 / 63mm Automatic Irrigation Venturi Fertilizer Injectors Flow Rate 8 - 20 M3/H 1
