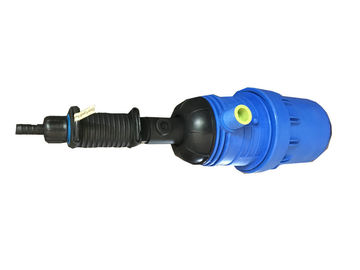

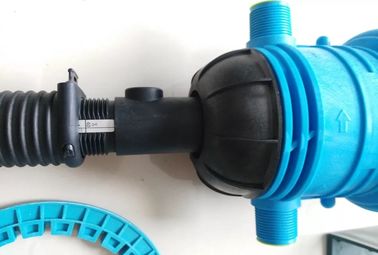

Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10%

China Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10% supplier
Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10% supplier Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10% supplier Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10% supplier Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10% supplier

Large Image :  Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10%

Product Details:

Place of Origin: China
Brand Name: TJ
Certification: ISO9000
Model Number: DOS0134

Payment & Shipping Terms:

Minimum Order Quantity: 5000pcs/day
Price: Negotiate
Packaging Details: opp, carton and pallect
Delivery Time: 10-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000pcs/day
Contact Now
Detailed Product Description
Name: Proportional Doser Liquid Fertilizer Injector Metering Pump Material: POM
Szie: 3/4''or 1'' Inch Performance: Chemical Resistance

3/4'' or 1'' 1% - 10% Proportional Doser Injector Metering Pumps Agriculture





Proportional range:

0.4%-4%



Flow-rate range:

20-2500 L/H



Flow temperature:

4-30



Working water pressure:

0.2-6kgs



Caliber of water inlet and water outlet:

32mm/25mm





Product Description:



1-Working Principle

The proportional pump takes the flowing pressure water as power, having small water pressure loss, without any other power facilities. It uses water power of the proportional pump as engine which drives the piston and the connecting rod inside the proportional pump, sucks up the liquid additive directly and makes it dissolve in the water flow. This device moves up and down in a cylinder. When pressing out the water, it uniformly sucks the additives loaded at the bottom of the container into the water flow through a tube. Repeat the up-and-down motion until the effect is achieved that the additive is added to the flowing water evenly and constantly.





2-Specification

Proportional range: 0.4%-4%



Flow-rate range: 20-2500 L/H



Flow temperature: 4℃-30℃



Working water pressure: 0.2-6kgs



Caliber of water inlet and water outlet: 32mm/25mm



3- Main Application Fields

1-Horticulture industry: the fertilization, storage and pest control for flowers, fruits and vegetables, etc. 2-Animal husbandry: the fixed-ratio health dosing for livestock and poultry, such as chickens, ducks, oxen and pigs. 3-Industrial field: water treatment, chemical engineering, metal processing, and fire control, etc. 4-Constant proportion dilution of special solvents such as smell removal solvent, cooling solvent and lubricating solvent; 5-Car-washing industry, printing industry, hospitals, wine industry and other industries.



Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10%

Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10%

Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10%

Proportional Doser Liquid Fertilizer Injector Metering Pump 3/4'' 1'' 0.4 - 10%
